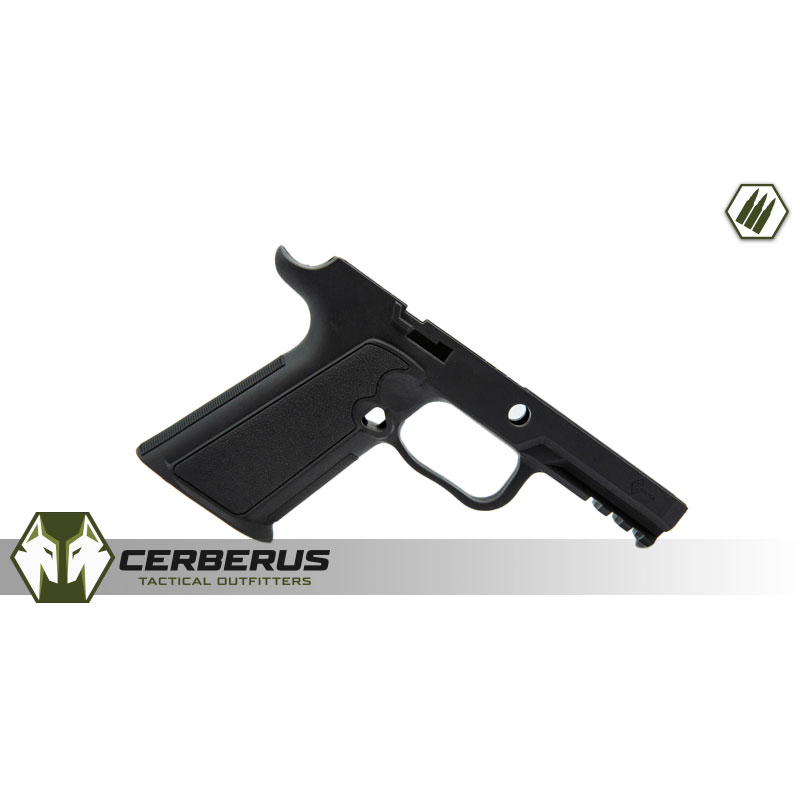

M1811 Grip Module for Sig P320

The beaver tail has been moved up to reduce the height over bore while still maintaining the full functionality of the SIG P320 fire control group. The beaver tail has been profiled to draw the hand into the gun while providing a large surface to aid in reducing the effort to mitigate recoil. The rear profile of the beaver tail has been shaped to reduce catching the web of the user’s hand when gripping the gun promoting quick grip acquisition.

A large trigger guard was kept to ensure use with gloves in cold weather and reprofiled to remove unnecessary features. The Profile of the trigger guard was moved up as high as possible to improve grip index relative to the beavertail while maintaining clearance for the P320 trigger. The tolerancing for the mag release button has been reduced to combat dust ingress.

Grip Texture
Simulated side scales similar to the 1911 are present to stiffen the grip and fill the natural void in the palm of the hand without increasing the front and back strap radii. The front and back strap have been checkered with 25 lines per inch to improve grip without damaging clothing.

Accessory Rail
A MIL-STD-1913 Picatinny rail is maintained under the slide in front of the trigger guard. Note, installation of a light, or underbarrel attachment adjusted for a P320 may require a universal mount adapter as the trigger guard has been improved.

Factory Compatibility
The grip module is designed to use all factory equipment that comes with a SIG P320: Fire control unit, magazine catch (reversible), slide stop, take down pin. The module accepts factory SIG P320 magazines (9mm) 17rd, and 21rd. The module is compatible with both Safety Selector equipped P320 and without. In order to work with Selector-equipped models, a small cut must be made. An interior outline has been molded into the part to assist with making the cut. We recommend a small rotary tool, such as a Dremel with a 1/8” burr bit. If this modification is not something you would like to perform, we offer it as an additional service which you can select on the store page before adding to cart.

Accessory Compatibility
Due to availability the following holsters have been tested and approved for use with the M1811 Grip Module. However, it should be noted that due to variations in manufacturing Brouwer LLC cannot guarantee full compatibility without some potential modification.
